Develop a new negotiator

In this section, we go through the process of developing a new agent for the Stacked Alternating offers Protocols. Firstly, let’s look at an example from the previous tutorial in which we simulate a buyer and a seller negotiating over a deal using time-based negotiators.

# create negotiation agenda (issues)
issues = [
    make_issue(name="price", values=10),
    make_issue(name="quantity", values=(1, 11)),
    make_issue(name="delivery_time", values=10),
]

# create the mechanism
session = SAOMechanism(issues=issues, n_steps=20)

# define ufuns
seller_utility = LUFun(
    values={
        "price": IdentityFun(),
        "quantity": LinearFun(0.2),
        "delivery_time": AffineFun(-1, bias=9),
    },
    weights={"price": 1.0, "quantity": 1.0, "delivery_time": 10.0},
    outcome_space=session.outcome_space,
    reserved_value=15,
).scale_max(1.0)
buyer_utility = LUFun(
    values={
        "price": AffineFun(-1, bias=9.0),
        "quantity": LinearFun(0.2),
        "delivery_time": IdentityFun(),
    },
    outcome_space=session.outcome_space,
    reserved_value=10,
).scale_max(1.0)

session.add(AspirationNegotiator(name="buyer"), ufun=buyer_utility)
session.add(AspirationNegotiator(name="seller"), ufun=seller_utility)
session.run()
session.plot()
plt.show()

The negotiation ended with an agreement far from the pareto-front (pareto-distance = \(0.31\)) which does not seem like a good result. What is the problem?

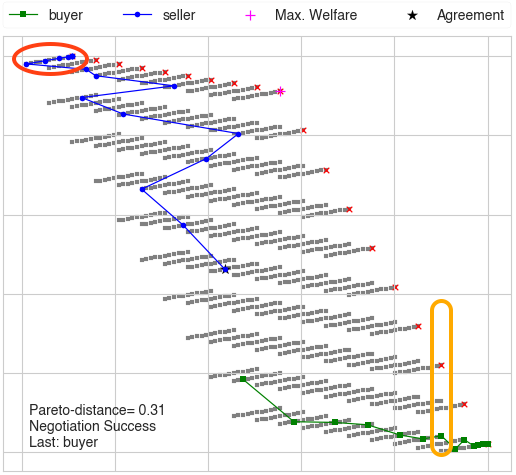

Looking carefully at the 2D representation of the negotiation above, we can immediately see the issue: uninformed concession. Consider the buyer agent. It started with offering the best outcome for itself (The green offers above) and repeated it for a while (as expected) then started conceding (i.e. offering outcomes with lower utility for itself. Nevertheless, when it did conceed, it did not consider its partner at all. The figure below shows the same figure focusing on one specific choice the buyer did:

The problem is highlighted in orange. Even though the buyer had several offers that are of the same utility for itself, they are not of the same utility to its partner. In the figure, it is clear that the buyer, chose the offer that was in fact the worst for its opponent. Choosing any other offer in the orange rectangle could have been better as it is nearer to the pareto-front. By offering this way, the partners are leaving money on the table.

Could the buyer have done better? Yes. By the time it gave this offer, it already have received several offers from the seller which could have been used to estimate the utility of different outcomes the buyer is cosidering offering for the seller (highlighted in red).

The ideas we want to implement is pretty simple:

Use a time-based consession strategy but always offer the outcome nearest to the first offer of the partner

The intuition behind this simple strategy relies on two assumptions:

1. The partner’s first offer is most likely its best outcome. Most negotiators will start with the best outcome for themselves.

2. Nearer outcomes in the outcome-space, are likely to have similar utilities (i.e. the utility function of the partner is smooth).

Both of these assumptions are sometimes violated but our goal here is to develop a simple yet useful negotiator not to end once and for all the hunt for the most effective negotiation strategy. With that said, let’s dive in.

Building a random negotiator

As a first step, we will build a negotiator that acts randomly.

Let’s assume that we are too lazy to even read the documentation and want to learn how to develop a negotiator for the stacked alternating offers protocol. The first thing is to create a negotiator class and see what are the methods we need to override. All negotiators for the SAO mechanism should inherit from the SAONegotiator base class. Let’s try to do that

class RandomNegotiator(SAONegotiator):
    ...


try:
    RandomNegotiator()
except Exception as e:
    print(e)

This is telling us that there is one (and only one) required abstract method that we need to override called propose(). This is the signature of this method:

def proposed(self, state: SAOState) -> Outcome:
    ...

It receives the negotiation state which has all information available to the negotiator about the current state of the negotiation and generates an outcome to offer to the opponent. That is it. Moreover, we should know that the negotiator always have access to a NegotiatorMechanismInterface object that gives it unchanging information about the negotiation (for example the number of allowed rounds, any real-time limits on the negotiation, the number of partners, etc). This interface is accessible through the nmi member of the negotiator. With this knowledge, we can build our first negotiator which will simply offer randomly.

class RandomNegotiator(SAONegotiator):
    def propose(self, state):
        return self.nmi.random_outcomes(1)[0]

Let’s define a helper function for testing our negotiator that replaces the buyer and/or seller negotiators in the code sample we used above:

def try_negotiator(cls, replace_buyer=True, replace_seller=True, plot=True, n_steps=20):
    buyer_cls = cls if replace_buyer else AspirationNegotiator
    seller_cls = cls if replace_seller else AspirationNegotiator

    # create negotiation agenda (issues)
    issues = [
        make_issue(name="price", values=10),
        make_issue(name="quantity", values=(1, 11)),
        make_issue(name="delivery_time", values=10),
    ]

    # create the mechanism
    session = SAOMechanism(issues=issues, n_steps=n_steps)

    # define ufuns
    seller_utility = LUFun(
        values={
            "price": IdentityFun(),
            "quantity": LinearFun(0.2),
            "delivery_time": AffineFun(-1, bias=9),
        },
        weights={"price": 1.0, "quantity": 1.0, "delivery_time": 10.0},
        outcome_space=session.outcome_space,
        reserved_value=15.0,
    ).scale_max(1.0)
    buyer_utility = LUFun(
        values={
            "price": AffineFun(-1, bias=9.0),
            "quantity": LinearFun(0.2),
            "delivery_time": IdentityFun(),
        },
        outcome_space=session.outcome_space,
        reserved_value=10.0,
    ).scale_max(1.0)

    session.add(buyer_cls(name="buyer"), ufun=buyer_utility)
    session.add(seller_cls(name="seller"), ufun=seller_utility)
    session.run()
    if plot:
        session.plot()
        plt.show()
    return session

… and try our first attempt:

s = try_negotiator(RandomNegotiator)

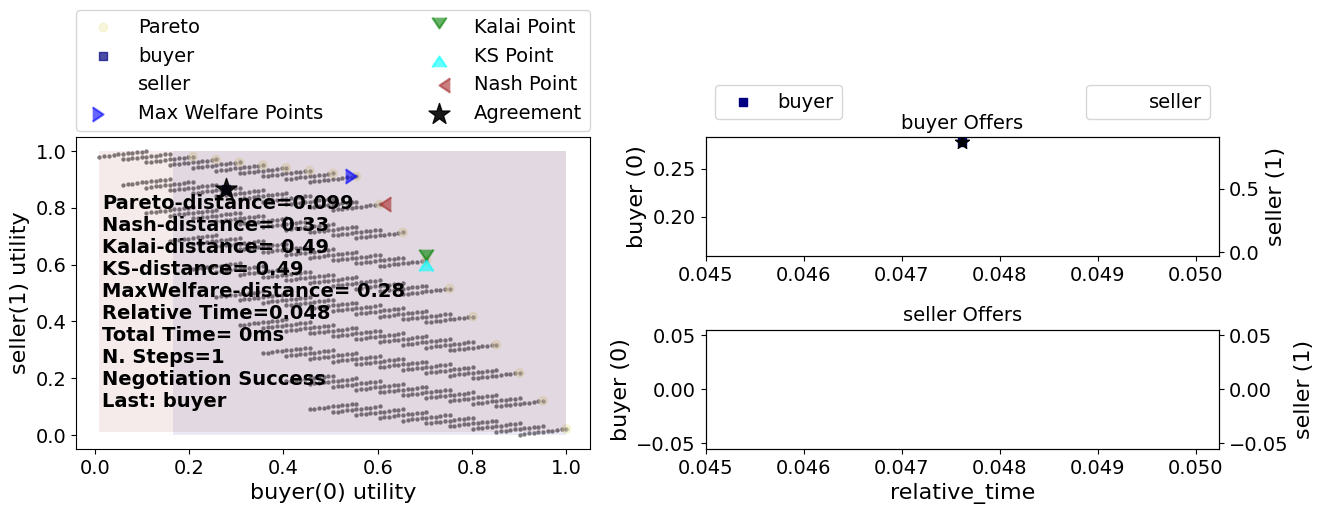

What just happened? It seems that the buyer offered a single offer which was immediately accepted by the seller. We can check that explicitly by looking at the negotiation trace which stores all the offers exchanged (along with the agent that offered it):

s.trace

[('buyer-0fc1def3-d56c-47c0-84f5-708d67ffbbb3', (3, 10, 7))]

Why did this happen? To answer this question, let’s try to run another negotiation but replacing only the buyer

s2 = try_negotiator(RandomNegotiator, replace_seller=False)

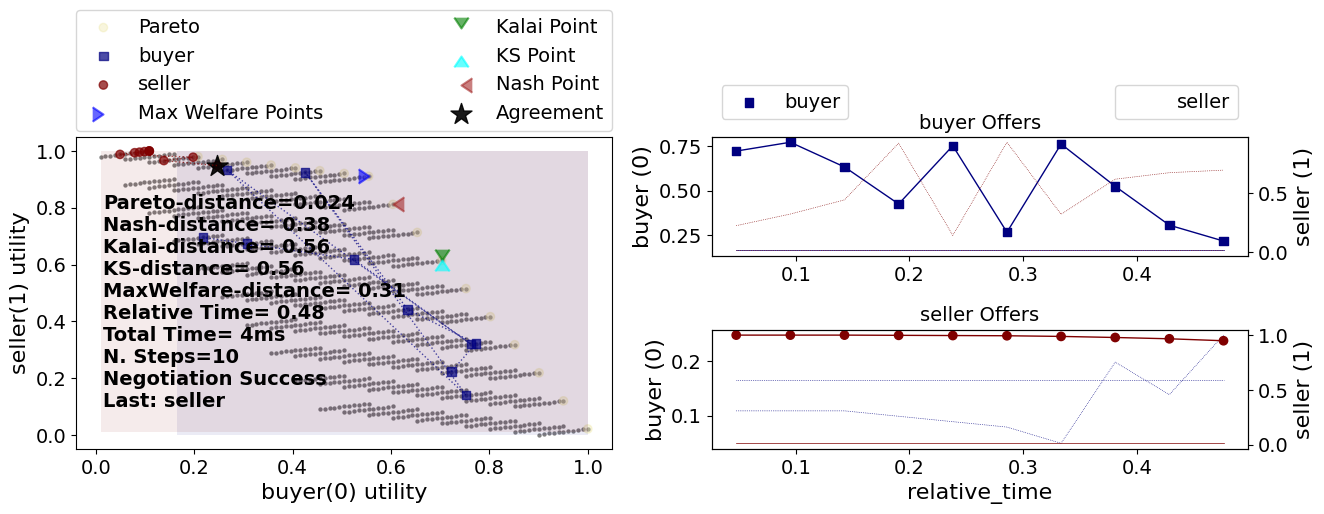

The seller behaves as the time-based aspiration negotiator is expected to behave. It starts at its best outcome then it conceeds slowly. Our random buyer agent also seems to behave as expected, it offers outcomes all over the place. What happened in this case, is that the buyer accepted some offer from the seller. How did it decide to do so? We did not implement a way for our negotiator to make this decision.

The default acceptance strategy in NegMAS is to accept an outcome if and only if it has a utility for the negotiator better or equal to whatever offer it would hace proposed at this negotiation state.

So this is what happened, the buyer agent received some offer from the aspriation negotiator, it called our propose method to see what outcome would it have offered. Because our propose behaved randomly, it returned some outcome that has a utility less than or equal to the utility for the buyer of the seller’s offer and that is why it accepted.

It is clear that the default acceptance strategy in NegMAS does not make sense for our random negotiator (not that random offering makes sense in the first place :-) ).

Can you see why the first negotiation we attempted between our two random agents ended up at the first offer?

Let’s test your answer by checking if it explains what happens when we repeat the process and plot a histogram of the step (round) at which the negotiation ended.

ended_at = [
    try_negotiator(RandomNegotiator, plot=False).state.step for _ in range(1000)
]
plt.hist(ended_at)
plt.show()

Better acceptance strategy

So how can we slightly improve our random negotiator. We can make it accept offers only if they are above some threshold. To do that we need to override the respond method which is used by the SAOMechanism to check if an outcome is acceptable for the negotiator. It has the following signature:

def respond(self, state: SAOState, offer: Outcome, nid: str) -> ResponseType:
    ...

The ResponseType returned is an enum with different possible options. We are only interested in three of them:

• ACCEPT_OFFER: Accept

• REJECT_OFFER: Reject

• END_NEGOTIATION: End the negotiation immediately

Here is how we can add our acceptance strategy:

class BetterRandomNegotiator(RandomNegotiator):
    def respond(self, state, source: str = ""):
        offer = state.current_offer
        if self.ufun(offer) > 0.9:
            return ResponseType.ACCEPT_OFFER
        return ResponseType.REJECT_OFFER

The only new thing for us here is that the negotiator can access it own utility function using self.ufun. Let’s try to replace both agents with our slightly better random negotiator

s3 = try_negotiator(BetterRandomNegotiator)

Now both agents are proposing randomly. How can we check that our complicated acceptance strategy is implemented correctly?

We can check that the agent that accepted the final offer (the seller in this case) had a utility above 0.8. To do that we need to know a little bit about the state object which we receive in both propose and respond and can access at any time on the mechanism object using the state property. Here is the final state of the negotiation:

print(s3.state)

SAOState(
    running=False,
    waiting=False,
    started=True,
    step=3,
    time=0.0005532499926630408,
    relative_time=0.19047619047619047,
    broken=False,
    timedout=False,
    agreement=(7, 3, 0),
    results=None,
    n_negotiators=2,
    has_error=False,
    error_details='',
    threads={},
    last_thread='',
    current_offer=(7, 3, 0),
    current_proposer='buyer-75c6ca59-85ea-41dd-8957-2cb944f88990',
    current_proposer_agent=None,
    n_acceptances=2,
    new_offers=[('buyer-75c6ca59-85ea-41dd-8957-2cb944f88990', (7, 3, 0))],
    new_offerer_agents=[None],
    last_negotiator='buyer'
)

Some of these state variables are specific to the SAOMechanism but others are common to all mechanisms (i.e. available in the MechainsmState class which is the parent of SAOState). Let’s check some of these first:

Negotiation execution state:

• started Did the negotiation start?

• running Is the negotiation still running?

• waiting Is the negotiation waiting for some response from one of the negtiators?

• has_errors Does the negotiation have any exceptions?

Negotiation end state:

• bronken Did a negotiator end the negotiation (by returning ResponseType.END_NEGOTIATION from its respond() method).

• timedout The negotiation timed out without agreement.

• agreement The final agreement (or None if broken or timedout).

Timing state:

• step The current negotiation step (here it is 9 out of the 20 steps allowed)

• time The real time that passed since the negotiation stareted

• relative_time The fraction of teh negotiation that passed (here it is \((9+1)/(20+1=0.476...\)).

There are also SAO specific state variables:

The most important for us are:

• current_offer which will be the same as the agreement as the negotiation has already ended.

• current_proposer The ID of the negotiator that proposed the current_offer.

Using this information, we can confirm the utility value of the agreement for the agent that accepted it as follows:

negotiator_ids = [_.id for _ in s3.negotiators]
acceptor = [i for i, _ in enumerate(negotiator_ids) if _ != s3.state.current_proposer][
    0
]
print(s3.negotiators[acceptor].ufun(s3.agreement))

0.9644268774703557

Seems OK.

Parameterizing the Negotiator

One issue with our negotiator is that the acceptance threshold is hard-coded. We can add parameters to the negotiator while keeping the default parameters of all negotiators as follows:

class BetterRandomNegotiator(RandomNegotiator):
    def __init__(self, *args, acceptance_threshold=0.8, **kwargs):
        super().__init__(*args, **kwargs)
        self._th = acceptance_threshold

    def respond(self, state, offer, nid: str):
        if self.ufun(offer) > self._th:
            return ResponseType.ACCEPT_OFFER
        return ResponseType.REJECT_OFFER

Smart Aspiration Negotiator

We now turn our attention to developing our smart aspiration negotiator: concede as AspirationNegotiator, but offer the nearest outcome at a given utility level to the opponent’s first offer

To do that, we need to be able to find all outcomes above some utility threshold. To do that, we will use a class defined by NegMAS called InverseUtilityFunction. In general, negotiators in NegMAS should expect that the ufun may change at any time during the negotiation. Our negotiator will need to re-calculate the utility value associated with each outcome at every ufun change. It can do that in the on_preferences_changed() callback.

Moreover, we need some way to calcualate the current utility level we are willing to accept (and to offer around). Here we can use another component from NegMAS called PolyAspiration which is designed exactly for that. Let’s see what the negotiator looks like and then explain it:

from random import choice
from negmas import PolyAspiration, PresortingInverseUtilityFunction


class SmartAspirationNegotiator(SAONegotiator):
    _inv = None  # The ufun invertor (finds outcomes in a utility range)
    _partner_first = None  # The best offer of the partner (assumed best for it)
    _min = None  # The minimum of my utility function
    _max = None  # The maximum of my utility function
    _best = None  # The best outcome for me

    def __init__(self, *args, **kwargs):
        # initialize the base SAONegoiator (MUST be done)
        super().__init__(*args, **kwargs)

        # Initialize the aspiration mixin to start at 1.0 and concede slowly
        self._asp = PolyAspiration(1.0, "boulware")

    def on_preferences_changed(self, changes):
        # create an initiaze an invertor for my ufun
        changes = [_ for _ in changes if _.type not in (PreferencesChangeType.Scale,)]
        if not changes:
            return
        self._inv = PresortingInverseUtilityFunction(self.ufun)
        self._inv.init()

        # find worst and best outcomes for me
        worest, self._best = self.ufun.extreme_outcomes()

        # and the correponding utility values
        self._min, self._max = self.ufun(worest), self.ufun(self._best)

        # MUST call parent to avoid being called again for no reason
        super().on_preferences_changed(changes)

    def respond(self, state, source: str):
        offer = state.current_offer
        if offer is None:
            return ResponseType.REJECT_OFFER
        # set the partner's first offer when I receive it
        if not self._partner_first:
            self._partner_first = offer

        # accept if the offer is not worse for me than what I would have offered
        return super().respond(state, source)

    def propose(self, state):
        # calculate my current aspiration level (utility level at which I will offer and accept)
        a = (self._max - self._min) * self._asp.utility_at(
            state.relative_time
        ) + self._min

        # find some outcomes (all if the outcome space is  discrete) above the aspiration level
        outcomes = self._inv.some((a - 1e-6, self._max + 1e-6), False)
        # If there are no outcomes above the aspiration level, offer my best outcome
        if not outcomes:
            return self._best

        # else if I did not  recieve anything from the partner, offer any outcome above the aspiration level
        if not self._partner_first:
            return choice(outcomes)

        # otherwise, offer the outcome most similar to the partner's first offer (above the aspiration level)
        nearest, ndist = None, float("inf")
        for o in outcomes:
            d = sum((a - b) * (a - b) for a, b in zip(o, self._partner_first))
            if d < ndist:
                nearest, ndist = o, d
        return nearest

Let’s look at this negotiator in details. We override four methods: - init() to initialize the negotiator. This method should alwyas call super().__init__() to correctly initialize the negotiator. Moreover, we initialize the aspiration mixin to slowly concede from zero. - on_preferences_changed(changes) to update the ufun inverter, my ufun’s range and find out the best outcome. *You must call the parent’s implementation using super().on_preferences_changed() to avoid unnecessary repeated calls to this method. - respond() to implement our acceptance strategy. In this case the default NegMAS strategy is OK for us (called in the last line). We only need to save the partner’s first offer here to use it in our offering strategy. - propose() This is the core of the negotiator and implements its offering strategy. Let’s look to it line by line:

1. Calculate the current aspiration level which is the utility level above which we are going to offer

a = (self._max - self._min) * self.utility_at(state.relative_time) + self._min

2. Find outcomes above my aspiration level. Note here that we use some() instead of all() to be compatible with continuous outcome spaces

outcomes = self._inv.some((a, self._max), False)

3. We are now ready to generate our offer. We need to consider three cases:

- No outcomes were found above the given threshold. Here we just offer our best offer
```python
if not outcomes:
    return self._best
```
- We do not know the partner's first offer (i.e. we are the first to offer in the negotiation). Here we just choose any outcome from the list `outcomes` (i.e. those above the aspiration level)
```python
if not outcomes:
    return self._best
```

- We have the partner's first offer. In this case, we find the distance between each of the outcomes we have (above the aspiration level) and the partner's first offer using Euclidean distance:
```python
d = sum((a - b) * (a - b) for a, b in zip(o, self._partner_first))
```

Can you see some of the hidden assumptions in this negotiator?

While you are thinking about that, let’s check our new negotiator:

s = try_negotiator(SmartAspirationNegotiator)

As you can see, now the agreement is on the pareto front which means no money left on the table (i.e. it is impossible to increase the utility of one partner without decreasing the utility of the other).

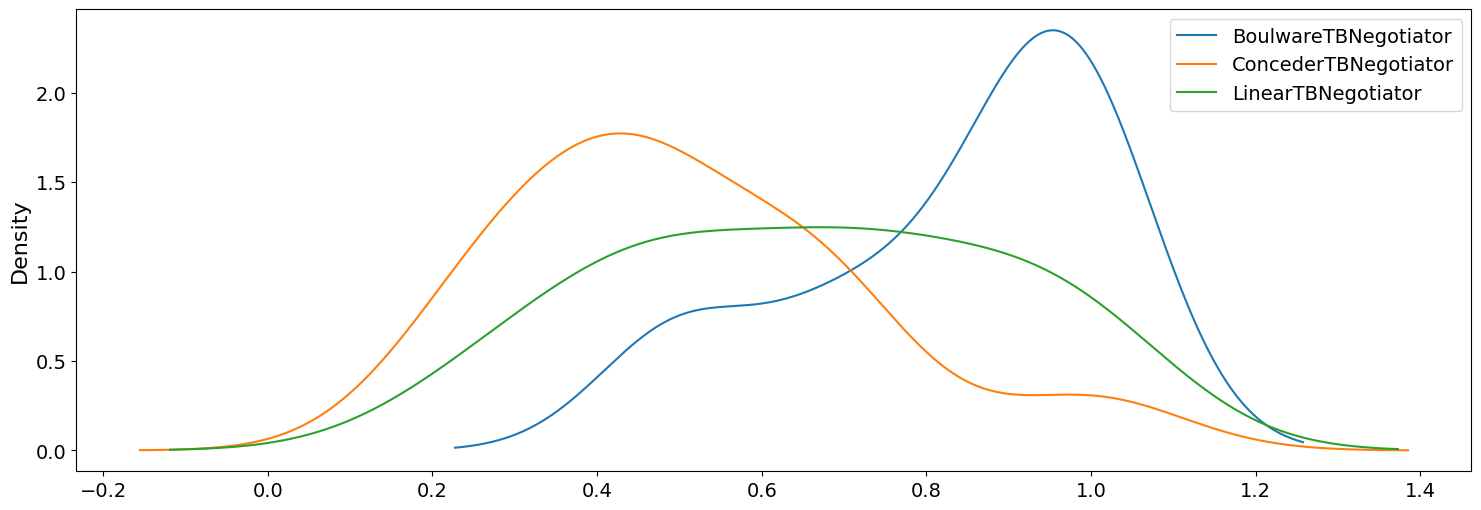

That is a single negotiation though. Let’s compare our new negotiator with AspriationNegotiator on multiple negotiations:

from collections import defaultdict

# find the pareto-frontier (it is the same for all negotiations)
frontier_utils, frontier_outcomes = s.pareto_frontier()
nash_utils, nash_outcome = s.nash_points()[0]
nash_welfare = sum(nash_utils)


# define the distance (Euclidean) to pareto frontier
def ed(a, b):
    return math.sqrt(sum((x - y) ** 2 for x, y in zip(a, b)))


def pareto_dist(a, frontier):
    # find the distance to the pareto-front (in outcome-space units)
    return min(ed(a, b) for b in frontier)


def nash_diff(a, nash_welfare):
    # find the difference in total welfare between the agreement and nash-agreement
    return nash_welfare - sum(_.ufun(a) for _ in s.negotiators)


# collect data about distance of the agreement to the pareto frontier
n, pdist, ndiff = 100, defaultdict(float), defaultdict(float)
for _ in range(n):
    for cls in (AspirationNegotiator, SmartAspirationNegotiator, RandomNegotiator):
        a = try_negotiator(cls, plot=False).state.agreement
        pdist[cls.__name__] += pareto_dist(a, frontier_outcomes) / n
        ndiff[cls.__name__] += nash_diff(a, nash_welfare) / n

print(
    f"Distance to Pareto Frontier: {dict(pdist)}\nDistance to the Nash Bargaining Solution: {dict(ndiff)}"
)

Distance to Pareto Frontier: {'AspirationNegotiator': 4.99999999999999, 'SmartAspirationNegotiator': 0.0,
'RandomNegotiator': 5.772604782081802}
Distance to the Nash Bargaining Solution: {'AspirationNegotiator': 0.3953547528665905, 'SmartAspirationNegotiator':
0.09861855750792485, 'RandomNegotiator': 0.3113391773960004}

It is clear that our negotiator achieved its goal. It reduces the distance to the pareto-front of the final agreement compared with vanilla AspirationNegotiator (pdist) to zero while reducing the difference in total welfare (utility sum) between the agreement and the best possible value (at the nash-point) by almost \(70\)%. Can you think of ways to further improve this design?

Back to our earlie question: Can you see some of the hidden assumptions in this negotiator? Here are some answers:

1. We implicitly assume that there is a meaningful distance measure defined over the outcome space. This is certainly not be the case if some of the outcomes are not cardinal. In our example, all outcomes are numeric but is it really meaningful to treat one day on the delivery issue as equal to one item as equal to one dollar? What can we do to avoid that? We can approximate distance over these issues by either matching (0) or mismatching (1). Moreover, we can consider the average matching score for all of the partner’s offers so far instead of only the first one. Try to implement that. You will need to access the Negotiator-Mechanism-Interface (NMI) to get the negotiation issues using: self.nmi.outcome_space.

2. Our aspiration mixin assumes that the minimum value for aspiration is the reserved value instead of zero which does not match the way we use it in propose(). In our case, reserved values were zero so this had no effect. In a general negotiation though, the reserved value should be taken into account.

Now that you have some experience developing a negotiating agent, try to improve the design by handling these two issues.

Running a tournament between negotiators

When evaluating your shiny new negotiator, you may want to run it against other negotiators on a set of negotiation scenarios to evaluate its performance. NegMAS simplifies this process by providing two types of negotiation tournaments:

• neg_tournament() is designed to run a number of competitor negotiators against a common set of opponents.

• cartesian_tournament() is designed to run a number of competitors against each other as well as some other optional non-competing negotiators.

Firstly, we need to generate a set of Scenarios to use for the tournament. This is a simple function that generates n random scenarios with two issues each:

from negmas.tournaments.neg import cartesian_tournament

from negmas.gb.negotiators.timebased import (
    BoulwareTBNegotiator,
    ConcederTBNegotiator,
    LinearTBNegotiator,
)
from negmas.inout import Scenario
from negmas.outcomes import make_issue
from negmas.outcomes.outcome_space import make_os
from negmas.preferences import LinearAdditiveUtilityFunction as U
from negmas.tournaments.neg import cartesian_tournament
from negmas.helpers import humanize_time
import time


def get_scenarios(n=2) -> list[Scenario]:
    # generates/reads the set of scenarios to be used in the tournament

    # Negotiation Issues
    issues = (
        make_issue([f"{i}" for i in range(10)], "quantity"),
        make_issue([f"{i}" for i in range(5)], "price"),
    )
    # Create n ufun groups on the same issues
    ufuns = [
        (
            U.random(issues=issues, reserved_value=(0.0, 0.6), normalized=True),
            U.random(issues=issues, reserved_value=(0.0, 0.2), normalized=True),
        )
        for _ in range(n)
    ]
    # Create a negotiation Scenario for each ufun set
    return [
        Scenario(outcome_space=make_os(issues, name=f"S{i}"), ufuns=u)
        for i, u in enumerate(ufuns)
    ]

We can now run a simple Cartesian tournament as follows:

# Run the tournament with 10 seconds per negotiation and 10 repetitions of each scenario on
#  each negotiator combination.
from negmas.helpers.strings import unique_name
from pathlib import Path

tic = time.perf_counter()
path = Path.home() / "negmas" / unique_name("test")
results = cartesian_tournament(
    competitors=[BoulwareTBNegotiator, ConcederTBNegotiator, LinearTBNegotiator],
    scenarios=get_scenarios(),
    mechanism_params=dict(time_limit=5),  # time per negotiation in seconds and rounds
    n_repetitions=5,  # number of repetition of each negotiation (these are not combined in score)
    path=path,
)
print(f"Done in {humanize_time(time.perf_counter() - tic)}")

Will run 180 negotiations on 2 scenarios between 3 competitors

Output()

               strategy     score
0  BoulwareTBNegotiator  0.924346
1    LinearTBNegotiator  0.857887
2  ConcederTBNegotiator  0.777152

Done in  4s

print(f"Done in {humanize_time(time.perf_counter() - tic, show_ms=True)}")

Done in  4s151ms

After running the tournament, we can check the resulting total_score for each negotiator type:

results.scores_summary[("advantage",)]

	count	mean	std	min	25%	50%	75%	max
strategy
BoulwareTBNegotiator	120.0	0.924346	0.075517	0.751351	0.878762	0.936668	1.000000	1.0
LinearTBNegotiator	120.0	0.857887	0.128219	0.558439	0.789007	0.878762	0.973484	1.0
ConcederTBNegotiator	120.0	0.777152	0.181186	0.367708	0.713144	0.801560	0.973484	1.0

As expected, Boulware got higher scores compared with Linear and Conceder time-based strategies.

We can also plot the KDE distribution of scores for each negotiator type.

results.scores.groupby("strategy")["advantage"].plot(kind="kde")
plt.legend()
plt.show()

We can check the complete logs with a wealth of extra information at the results.path folder:

path

PosixPath('/Users/yasser/negmas/test/20240221H171558908755lGCwjGiV')

Download Notebook.

Download Notebook.

Download Notebook.
